|Type:||Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters||Product Name:||Easy Operation Low Cost Ultrasonic Clamp On Flow Meter China|
|Accuracy:||Reading+/- 1%||Power Supply:||85~265VAC|
|Flow Velocity Range:||0.01~12m/s, Bi-directional||Sensitivity:||0.003m/s|
ultrasonic liquid flow meter,
high temperature ultrasonic flow meter

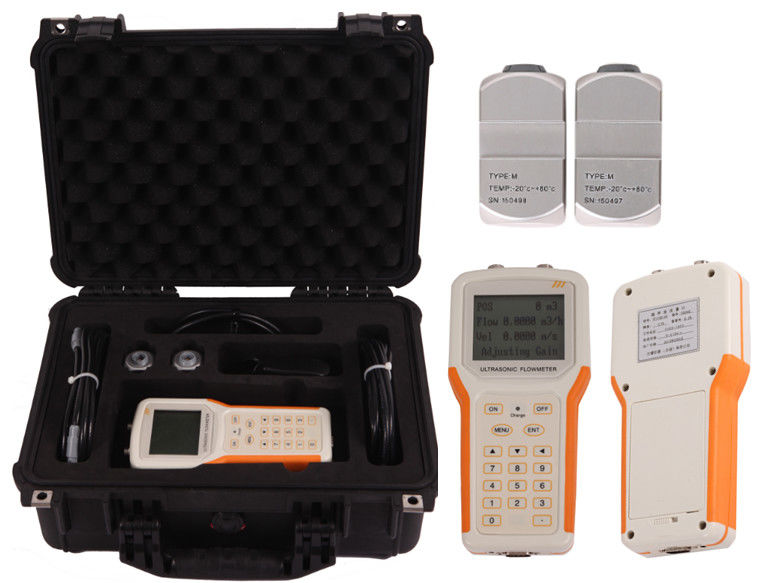

Easy Operation Low Cost Ultrasonic Flow Meter TF1100-CH portable clamp on flow meter
Our product Low Cost Ultrasonic Flow Meter TF1100-CH can directly display the flow rate, velocity, level, and flow totalizer. With different built-in algorithms, the product supports pipes of different standards in various countries and can be widely used for measurement or monitoring of total water drainage.
Transit-time Handheld battery powered flow meter works on the transit-time method. The clamp-on ultrasonic transducers are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe.
User can use hand to hold as well as to operate the flow meter main unit. This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.
Easy Operation Low Cost Ultrasonic Flow Meter TF1100-CH portable clamp on flow meter Features:
1. Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.
2. Data logger function.
3. Can be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.
4. 14 hours battery (rechargeable), back-lit 4 lines display.
5. Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃.
6. Non-invasive transducers.
7. Lightweight and easily transportable in box.
Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Metallurgy and mining applications
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.
● Service and maintenance
● Replacement of defective devices
● Support of commissioning process and installation
● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves
|Measurement principle||Ultrasonic transit-time difference correlation principle|
|Flow velocity range||0.01 to 12 m/s, bi-directional|
|Repeatability||0.2% of reading|
|Accuracy||±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s|
|Damping of displayed value||0-99s(selectable by user)|
|Liquid Types Supported||both clean and somewhat dirty liquids with turbidity <10000 ppm|
|Operating temperature||-20℃ to +60℃|
|Housing material||ABS( UL 94HB)|
|Display||4 line×16 English letters LCD graphic display, backlit|
|Totalized||gallons, ft³, barrels, lbs, liters, m³,kg|
|Communication||OCT, RS232 ,Logged data|
|Security||Keypad lockout, system lockout|
|Degree of protection||IP65 according to EN60529.(IP67 or IP68 Upon request)|
|Suited Liquid Temperature||Std. Temp.: -35℃~85℃ for short periods up to 120℃|
|High Temp.: -35℃~200℃ for short periods up to 250℃|
|Pipe diameter range||20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L|
|Transducer Size||Type S 48(h)*28(w)*28(d)mm|
|Type M 60(h)*34(w)*33(d)mm|
|Type L 80(h)*40(w)*42(d)mm|
|Material of transducer||Aluminum for standard temp. sensor, and peek for high temp. sensor|
|Cable Length||Std: 5m|
Data sheet download TF1100-CH transit-time handheld ultrasonic flowmet...
Manual Download TF1100-CH transit-time handheld flowmeter Manual.p...
Packing & Delivery
Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
