Lanry Instruments (Shanghai) Co., Ltd.
Specialize In Ultrasonic Flowmeter More Than 20 Years!
 |
| Place of Origin: | Shanghai, China (Mainland) |
| Brand Name: | LANRY |
| Certification: | CE |
| Model Number: | DOF6000-W |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton package |
| Supply Ability: | 100pcs /week |
| Product Name: | Doppler Open Channel Flow Meter | Accuracy: | 1% Of Reading From 1.5 To 4.5m/s |
|---|---|---|---|
| Power Supply: | 85~265VAC, 12~28VDC（Wall-Mounted) | Operating Temperature: | -20℃ To +60℃ |
| Size: | 244*196*114mm(Wall-Mounted); | Degree Of Protection: | IP66 |
| High Light: | partially filled pipe flow meter,flow meter river velocity |
||
1. Measure flow in partially filled pipes and open channels.
2. 16GB SD card data logger can be optional.
3. Display the velocity, level, flow rate and flow totalizer.
4. No flume or weir required.
5. 20 coordinate points to describe the river’s shape of cross section.
6. 4-20mA, RS485 (Modbus) /GPRS outputs are available.
| Enclosure type | Wall-Mounted |
| Power Supply: | 85~265VAC,12~28 VDC(Wall-mounted) |
| Degree of protection | IP65 |
| Operating temperature | -20℃ to +60℃ |
| Application range | Pipe: 300-6000mm, Channel: 200-6000mm |
| Outputs: | 4-20mA, RS485(Modbus), data logger, GPRS (optional) |
| Enclosure Material | Fiberglass(Wall-mounted) |
| Size | 244L×196W×114H (mm) |
| Data logger | 16GB |
| Weight | 2.4kg |
Specifications :DOF6526 sensor
DOF6526 sensor:
Depth | Range: | 0m to 3.0m or 0m to 6.0m |
| Accuracy: | ±0.25% of calibrated lower range |
| Resolution: | H2 0-1m at 1mm, 1-2m at 2mm |
Velocity | Range: | 21mm/s to 4500mm/s bi-directional |
| Accuracy: | 2% of measured velocity |
| Resolution | 1mm/s |
Temperature | Temperature: | -17°C to 60°C |
| Resolution: | 0.1°C |
General | Cable: | 15M |
| Cable Options: | User specified up to 100 meters |
| Material: | PVC body, stainless steel mounting plate |
| Dimensions: | 290mm x 70mm x 30mm (L x W x H) |
| Weight: | 1kg (2kg with 15m cable) |
| Flow | Computation: | 0.1°C |
| Channel type: | Flow rate, flow totalizer |
Customer visiting

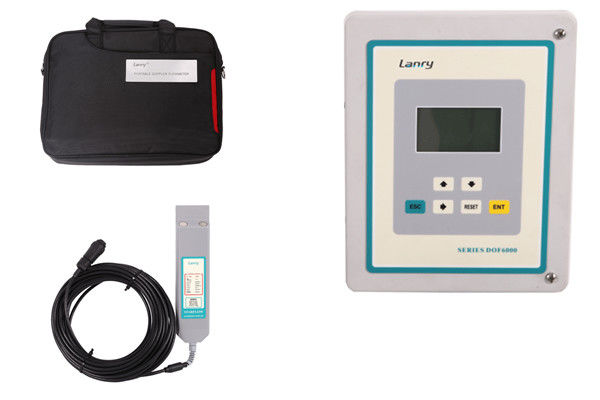

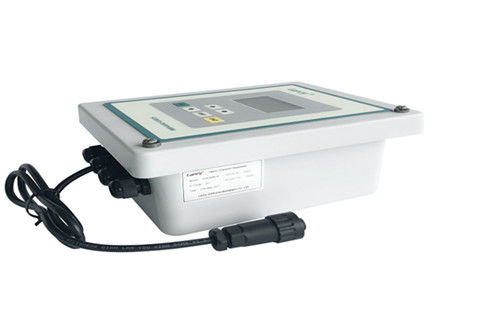

Wall-Mounted Doppler type Ultrasonic Flowmeter DOF6000-W 200-6000mm for Open Channel Application
With years of export experience along with excellent quality, advanced services and competitive
prices, Lanry has won numerous customers' trust and support.With years of export experience
along with excellent quality, advanced services and competitive prices, Lanry has won
numerous customers' trust and support.
Wall-Mounted Doppler type Ultrasonic Flowmeter DOF6000-W 200-6000mm for Open Channel Application
Standard meter: 3-7 days
Special meter: pls feel free to contact us
Express, by air, by sea can be optional.
