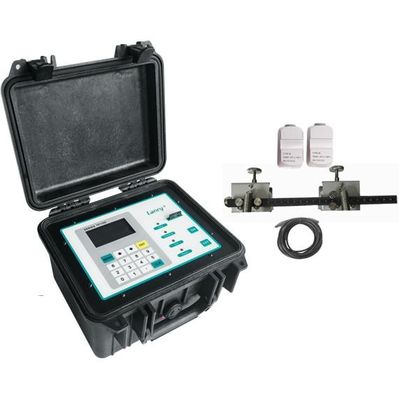

Pt1000 Sensor DN20 External Pipe Portable Steam Flow Meter For Chemical Industry

Pt1000 Sensor DN20 External Pipe Portable Steam Flow Meter For Chemical Industry
Pt1000 Sensor DN20 External Pipe Portable Steam Flow Meter For Chemical Industry

Large Image :  Pt1000 Sensor DN20 External Pipe Portable Steam Flow Meter For Chemical Industry

Product Details:

Place of Origin: Shanghai, China (Mainland)
Brand Name: Lanry
Certification: CE ISO 9000
Model Number: TF1100-EP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: packing: 1unit/carton
Supply Ability: 100 Unit/Units per Week TF1100-EP
Detailed Product Description
Enclosure Type: Portable Sensor Type: Clamp-on
Display: LCD Display Normal Medium Temperature: -35~85℃
High Medium Temperature: -35℃~200℃ Diameter: DN20-6000
Battery: Built In Lithium Battery Type: Ultrasonic
High Light:

chemical portable steam flow meter


DN20 external pipe flow meter


Pt1000 external pipe flow meter

Portable ODM Ultrasonic Chemical Industry Flowmeter With Clamp On Sensor​ Application


1.Water and waste water industry - hot water, cooling water, potable water, sea water etc.
2.Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.
3.Petrochemical industry
4.Metallurgy and mining applications
5.Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
6.Refrigeration and air conditioning systems Food , beverage and pharmaceutical industry
7.Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc






Material of transducer Aluminum for standard temp. sensor,and peek for high temp. sensor

Suited Liquid Temperature

Std. Temp.: -35℃~85℃ for short periods up to 120℃

High Temp.: -35℃~200℃ for short periods up to 250℃

Pipe diameter range

20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L

Transducer Size

Type S    48(h)*28(w)*28(d)mm

Type M    60(h)*34(w)*32(d)mm

Type L     80(h)*40(w)*42(d)mm

Cable Length


Temperature Sensor

Pt1000, 0 to 200℃, Clamp-on and Insertion type   Accuracy: ±0.1%






Flow velocity range 0.01 to 12 m/s, bi-directional

Measurement principle

Ultrasonic transit-time difference correlation principle




0.2% of reading

Response time




Damping of displayed value

0-99s(selectable by user)

Liquid Types Supported

both clean and somewhat dirty liquids with turbidity <10000 ppm

Power Supply

AC: 85-265V Up to 50 h with fully charged internal batteries

Degree of protection


Operating temperature

 -20℃ to +60℃

Housing material



4 line×16 English letters LCD graphic display, backlit


User Configured (English and Metric)


Rate and Velocity Display


gallons, ft³, barrels, lbs, liters, m³,kg

Thermal energy

unit GJ,KWh can be optional


4~20mA,OCT, Relay, RS232, RS485 (Modbus),Logged data


Keypad lockout, system lockout


Portable ODM Ultrasonic Chemical Industry Flowmeter With Clamp On Sensor​ function:

  1. Non-invasive transducers.
  2. Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.
  3. 50-hour battery (rechargeable)
  4. back-lit 4 lines display all integrated into a rugged
  5. Wide bi-directional flow range of 0.01 m/s to 12 m/s.
  6. Wide liquid temperature range: -35℃~200℃.

Datasheet Download TF1100-EP transit-time portable ultrasonic flowmet...

Manual Download TF1100-EP portable flowmeter manual.pdf
