Lanry Instruments (Shanghai) Co., Ltd.
Specialize In Ultrasonic Flowmeter More Than 20 Years!
Place of Origin: | Shanghai, China (Mainland) |
Brand Name: | LANRY |
Certification: | CE |
Model Number: | DF6100-EI |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Packing: 1unit/carton |
Supply Ability: | 1000 Unit/Units per Week DF6100-EI Doppler Ultrasonic Flow Meter |
Medium: | Activited Sludge | Protection Class: | IP68 |
---|---|---|---|
Accuracy: | 0.5%-2.0% F.S. | Principle: | Doppler Ultrasonic |
Type: | Insertion | Response Time: | 2-60s For Optional |
Power Supply: | AC: 85-265V DC: 24V/500mA | High Sensor Temperature: | -35℃-150℃ |
Highlight: | Activited Sludge Doppler Ultrasonic Flow Meter,IP68 doppler flow meter,Insertion type doppler flow meter |
0.5%-2.0% F.S. Doppler Ultrasonic Insertion Flow Meter For Activited Sludge

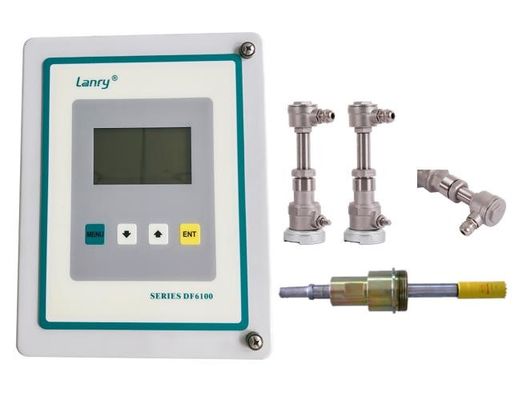

The insertion ultrasonic flowmeter consists of a converter and a pair of insertion sensors. The insertion sensor consists of a positioning base, a ball valve and a sensor core. Principle: When ultrasonic waves pass through the liquid, the liquid has a slight influence on the insertion time, and the change in the insertion time is proportional to the liquid flow rate.
Applicable fluid: suitable for water with a large number of impurities, particulate suspended matter or bubbles, and is full tube fluid measurement. Wide range of application, guide liquid can be measured.
Applicable pipe: carbon steel, stainless steel, PVC
0.5%-2.0% F.S. Doppler Ultrasonic Insertion Flow Meter For Activited Sludge Features:
1.Excellent low flow rate measurement ability, low to 0.05m/s
2.User-friendly configuration
3.For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
4.High-temperature transducer is suitable to liquids of -35℃ ~ 150℃
5.It is suitable for pipe sizes ranging from 65 to 6000mm
6.4-20mA, Relay and OCT outputs
7.A wide range of flow measurement, high flow rate can reach 12m/s
Technical Parameters:
Specifications: Transducer
Transducers Type | Insertion |
Degree of protection | IP67 or IP68 according to EN60529 |
Pipe diameter range | 65-4000 mm |
Suited Liquid Temperature | Std. Temp.: -35℃~85℃ |
Transducer Size | 58*58*295mm |
Material of transducer heads | Stainless steel |
Cable Length | Std: 10m |
Specifications: Transmitter
Measurement principle | Doppler ultrasonic |
Resolution | 0.25mm/s |
Accuracy | 0.5% -- 2.0% F.S. |
Repeatability | 0.2% of reading |
Flow Velocity Range | 0.05- 12 m/s |
Enclosure type | Wall-mounted |
Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron. |
Degree of protection | IP66 according to EN60529 |
Operating temperature | -20℃ to +60℃ |
Housing material | Fiberglass |
Measurement Channels | 1 |
Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) |
Units | User Configured (English and Metric) |
Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
Communication | 4-20mA,relays for Totalizer and alarm output |
Size | 244(h)*196(w)*144(d)mm |
Weight | 2.4kg |
Company profile
Lanry Instruments is the professional manufacturer of flow detection instruments, provides one package service of re-search and development, production, marketing and after-sales services. Engaged in the production of flow instruments more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability.
Packing for Transportation
With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support all over the world.
Delivery by Express
Smart oil level gauge Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea canbe optional.
